Pre-Infusion for the Rancilio Silvia Espresso Machine.


  1. If you have any intention of using any kind of pre-infusion, you should fully understand this diagram below.

  2. Understand why never flip the brew switch "on" before the pump is running and never leave the brew switch "on" when not in brew cycle.

Because of this specific boiler design we could have some amount of air trapped at the top of the boiler. This air is acting as a dampener or cushion for the force coming from the pump. In certain condition this event can be very dramatic.

However, because of this specific boiler design we could have variation in the amount of air in the boiler every time we brew. Therefore, if you attempt to pre-Infuse when the boiler is not properly full, you will have great negative effect on the extraction.

In particular when trying any Pre-infusion (with time pause), It can dampen water output. Therefore we can have great inconsistency in extractions (volume and temperature).

One simple way of improving consistency is to be consistent in how you are refilling the boiler after every use. Only using the brew switch (as it state in the user manual) or refilling and purging the air through the steam wand.


There are a few ways of adapting Silvia for pre-infusion. One is with a pre Infusion chamber/s, but this option has some negatives such as difficult installation, always having zero water pressure at start of pre-infusion and back flow of water after the pull.  A second option is a built in pre-infusion timer in the PID unit or on an external timer, like a countdown switch. I find this option also has some negatives, such as the lack of flexibility to pull a longer shot or to cut off short as needed during the pull. Sometimes you may need 18 second and sometimes as much as 30 or 40 seconds. The third option is a combination of electrical switching, with the user manually activating the pump as needed, together with monitoring the extraction and the pressure at the gauge. I think the third option is the best compromise because you can run the pressure at any range from zero to maximum, sequence the pump and the water to the puck and pull the shot for any length of time.

Some other benefits of the electrical switching option with an added low voltage switch:

  1. Very simple installation.
  2. Can be added to any Silvia--new, old, with PID, or without PID.
  3. This pre-infusion switch is safe and simple, works on a low voltage. (do not try this at home, on the high voltage side).
  4. The ULKA water pump can continue to be activated by the original water switch (middle switch), or a new push button switch can be installed to do the job.

The principal negatives:

  1. I couldn't find a small low voltage switch that will last for a long time. (And for this reason I don't recommend this with the additional switch)

  2. For best results, you will need an in-line pressure gauge also installed, to help you regulate the water flow.

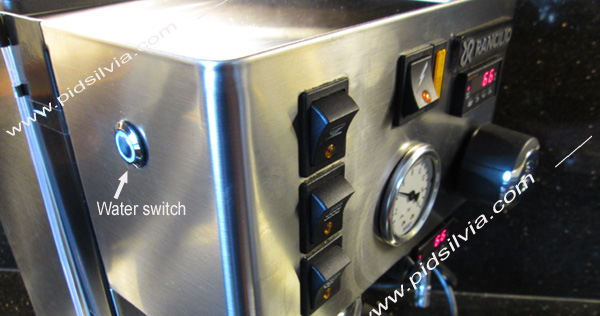

See picture below with a side switch.



Preinfusion with an additional mini switch low voltage switch

Preinfusion, Rancilio Silvia, Bottomless, nice clip.

One other more practical option is, using Silvia’s own switches as you can see in the video below. This will require an additional electrical wiring modification.  Do Not try this without the electrical wiring modification (it will not work).

Simple manual switching

Converting the existing switches to manual switching

Instruction kit sold by request at $15

Simple manual switching

Bear in mind that the ability to predict timing is no guarantee of a good shot. What is critical is knowing when to stop the pull for the particular coffee blend, grind and volume and water temperature.

Always remember that bitter, harsh, astringent taste is the result of over extraction. Over extraction may be caused by (a) too long of an extraction (too much water by volume passing through the puck or even through a single spot or area of the puck), (b) uneven water distribution in the puck due to cracks, and/or (c) uneven grind distribution or density.
