Rancilio Silvia covers removal.  - Back

For those who never gone inside, some picture and video.

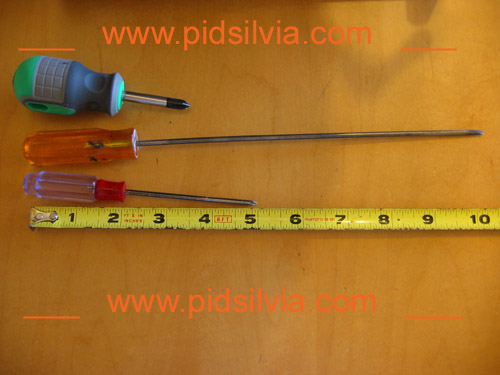

Tools you will need.

• Philips screwdrivers and optional towels.

• The long screwdriver can be replaced with Philips screwdriver.

image # 1

Parts Diagrams   V3 Silvia and 2014 boiler.pdf   V3 Silvia Parts Diagram.pdf   V1 Silvia Parts Diagram.pdf

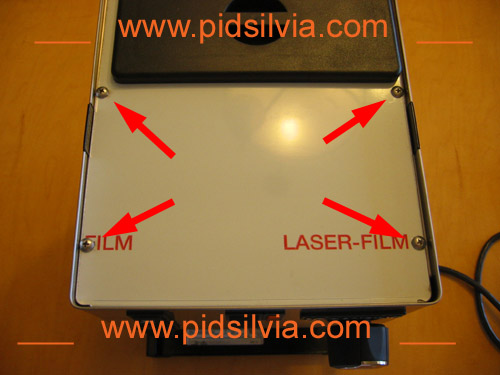

• Remove top cover.

image # 2

image # 3

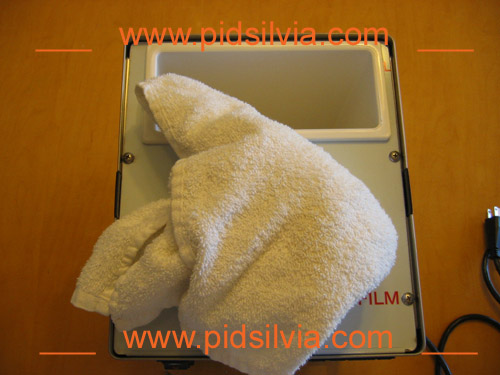

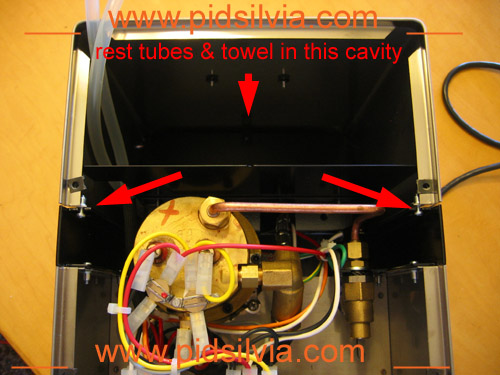

• You have the option to wrap water tubes with clean towel.

image # 4

image # 5

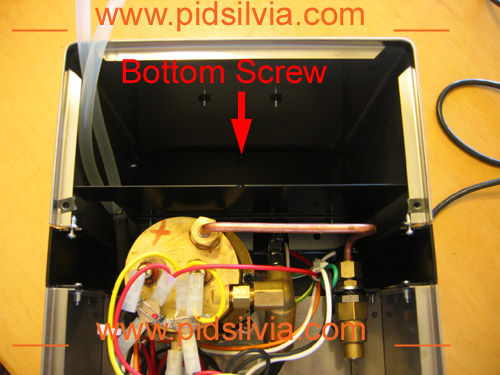

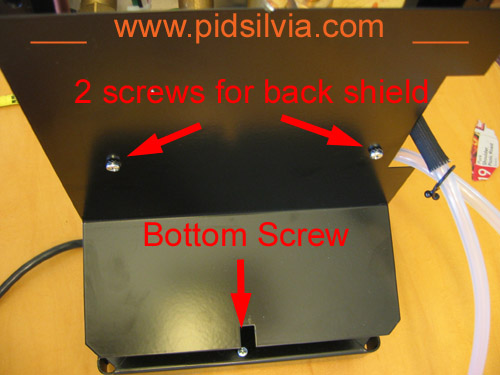

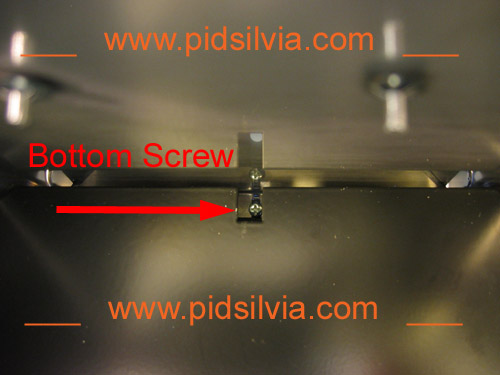

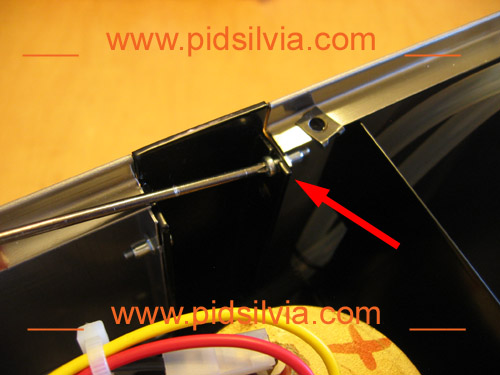

• To remove back cover, loosen 2 small screws on top, and one at the back.

image # 6

image # 7

• Remove back shield.

image # 8

image # 9

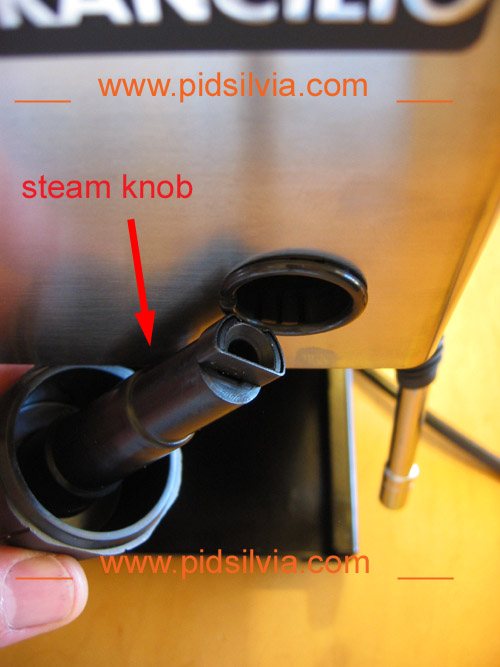

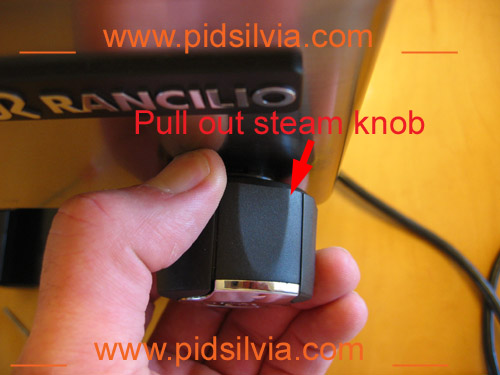

• To remove the steam knob, pull knob gently to you.

image # 10

image # 11

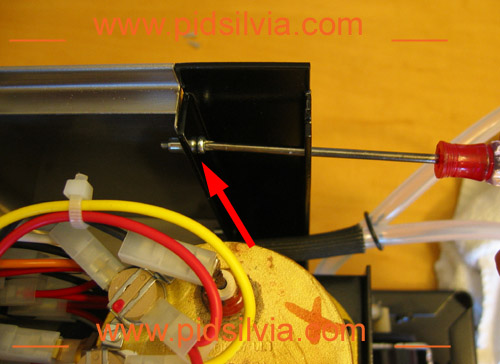

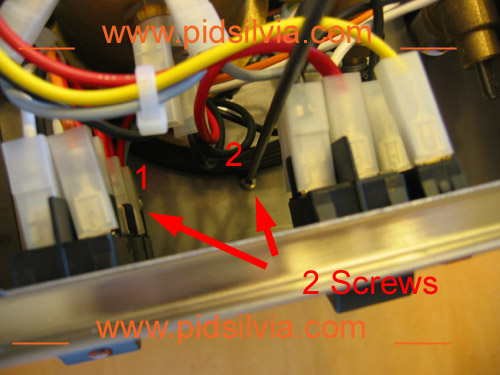

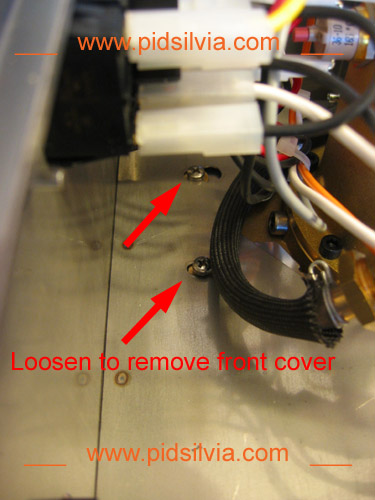

• To remove front panel,  loosen 2 screws inside (see picture) and 4 small screws on top, left & right.

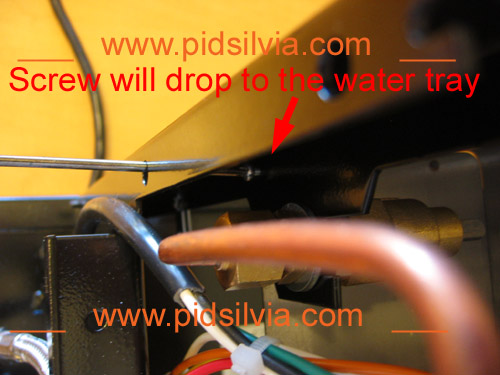

• Small screws will drop to the water tray.

image # 12

image # 13

• Here you have a good picture before disconnecting all Electrical connection from the boiler.
• Disconnect only at boiler side.
• # 5, #7 & #8 are black, #5 is the same wire as # 7

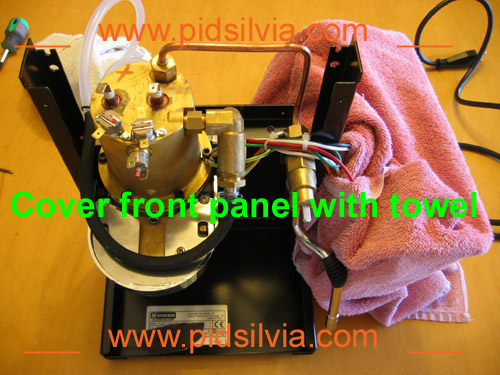

• Wrap front panel with towel as soon as you remove the panel, to protect from scratching the Chrome, black paint or stainless.

image # 14

image # 15

• Removing the chrome plated plastic Grouphead cover.

image # 16

image # 17
